OEM Scion Fuel Pump Wiring Harness

Fuel Tank Gage Harness
  • Select Vehicle by Model
  • Select Vehicle by VIN
Select Vehicle by Model
Make
Model
Year
or
Select Vehicle by VIN
For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

5 Fuel Pump Wiring Harness found

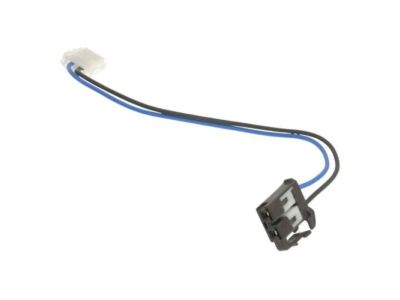

  • Scion Fuel Pump Wiring Harness - 77785-52020
    Scion Fuel Pump Wiring Harness Diagram - 77785-52020
    View related parts

    Scion Harness, Fuel Pump

    Part Number: 77785-52020
    $5.26 MSRP: $7.33
    You Save: $2.07 (29%)
    Ships in 1-2 Business Days
    ADD TO CART
    Product Specifications
    • Other Name: Pressure Regulator Harness, Terminal, Wire Harness
    Fits the following Scion Models:
    • tC | 2005-2010 | Base, Spec | 4 Cyl 2.4 L GAS

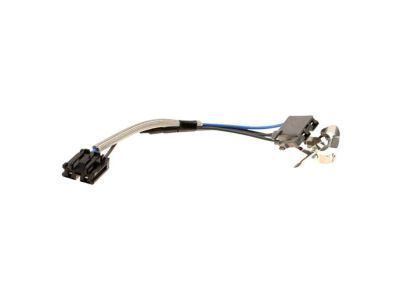

  • Scion Fuel Pump Wiring Harness - 77785-52110
    Scion Fuel Pump Wiring Harness Diagram - 77785-52110
    View related parts

    Scion Harness, Fuel Pump

    Part Number: 77785-52110
    $10.42 MSRP: $14.51
    You Save: $4.09 (29%)
    Ships in 1-3 Business Days
    ADD TO CART
    Product Specifications
    • Other Name: Harness, Wire
    Fits the following Scion Models:
    • xD | 2012-2014 | Base | 4 Cyl 1.8 L GAS

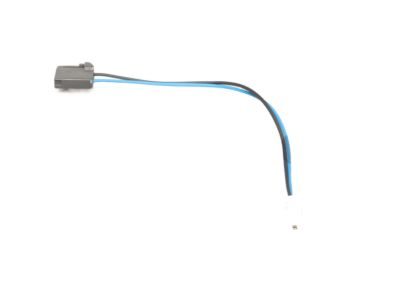

  • Scion Fuel Pump Wiring Harness - 77785-52060
    Scion Fuel Pump Wiring Harness Diagram - 77785-52060
    View related parts

    Scion Harness, Fuel Pump

    Part Number: 77785-52060
    $11.47 MSRP: $15.98
    You Save: $4.51 (29%)
    Ships in 1-3 Business Days
    ADD TO CART
    Product Specifications
    • Other Name: Harness
    Fits the following Scion Models:
    • xD | 2008-2011 | Base | 4 Cyl 1.8 L GAS

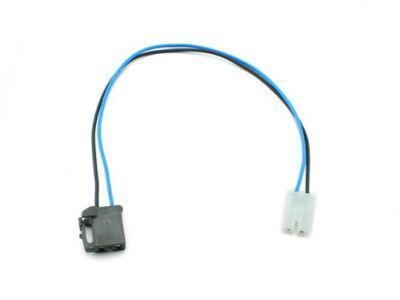

  • Scion Fuel Pump Wiring Harness - 77785-12010
    Scion Fuel Pump Wiring Harness Diagram - 77785-12010
    View related parts

    Scion Harness, Fuel Pump

    Part Number: 77785-12010
    $16.63 MSRP: $23.16
    You Save: $6.53 (29%)
    Ships in 1-3 Business Days
    ADD TO CART
    Product Specifications
    • Other Name: Harness, Wire Harness
    • Replaces: 77785-02081
    Fits the following Scion Models:
    • tC | 2012-2016 | Base | 4 Cyl 2.5 L GAS
  • Scion Fuel Pump Wiring Harness - 77785-12021
    Scion Fuel Pump Wiring Harness Diagram - 77785-12021
    View related parts

    Scion Harness, Fuel Pump

    Part Number: 77785-12021
    $16.51 MSRP: $22.99
    You Save: $6.48 (29%)
    Ships in 1-3 Business Days
    ADD TO CART
    Product Specifications
    • Other Name: Harness, Wire Harness
    • Replaces: 77785-12020
    Fits the following Scion Models:
    • tC | 2011 | Base | 4 Cyl 2.5 L GAS
    • xB | 2008-2015 | Base | 4 Cyl 2.4 L GAS
