3 diagrams found for the vehicle you selected.Select your vehicle options to narrow down results.
- 1.Front Lamps - Headlamp Components (Canada Built)
- 2.Front Lamps - Headlamp Components (Japan Built,With Hybrid)
- 3.Front Lamps - Headlamp Components (Japan Built,Without Hybrid)
Sort by:
Ref No.
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
Part Description

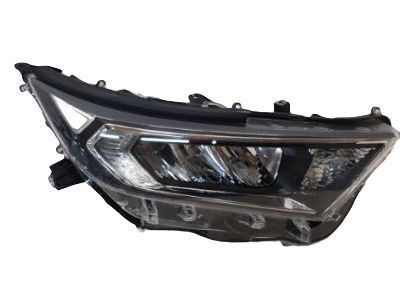

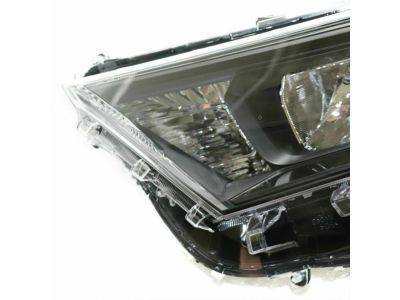

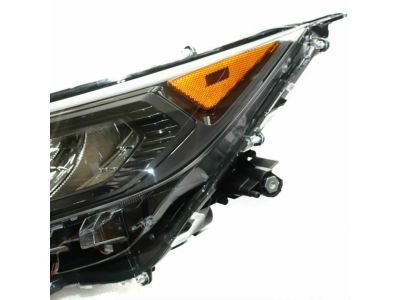

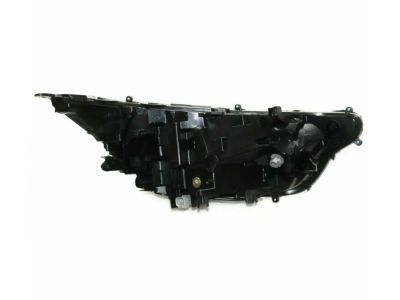

- 1
81130-42A12
Headlamp Assembly- Part Notes: 2019-21, Projector Led, W/Adaptive Lights
- Location: Passenger Side
$1469.22 $1002.531 - 1
81150-0R142
Headlamp Assembly- Part Notes: 2019-21, Multi-Led, North America Built, Chrome Bezel
- Location: Driver Side
$747.00 $509.721 - 181110-0R142
Headlamp Assembly- Part Notes: 2019-21, Multi-Led, North America Built, Chrome Bezel
- Location: Passenger Side
$747.00 $509.721 - 181110-0R152
Headlamp Assembly- Part Notes: 2019-21, Multi-Led, North America Built, Black Bezel
- Location: Passenger Side
$747.00 $509.721 - 1
81130-42812
Headlamp Assembly- Part Notes: 2019-21, Multi-Led, Japan Built, Chrome Bezel
- Location: Passenger Side
$744.99 $508.361 - 181130-42822
Headlamp Assembly- Part Notes: 2019-21, Multi-Led, Japan Built, Black Bezel
- Location: Passenger Side
$744.99 $508.361 - 181150-0R152
Headlamp Assembly- Part Notes: 2019-21, Multi-Led, North America Built, Black Bezel
- Location: Driver Side
$747.00 $509.721 - 181170-42812
Headlamp Assembly- Part Notes: 2019-21, Multi-Led, Japan Built, Chrome Bezel
- Location: Driver Side
$744.99 $508.361 - 181170-42822
Headlamp Assembly- Part Notes: 2019-21, Multi-Led, Japan Built, Black Bezel
- Location: Driver Side
$744.99 $508.361 - 181170-42A12
Headlamp Assembly- Part Notes: 2019-21, Projector Led, W/Adaptive Lights
- Location: Driver Side
$1469.22 $1002.531
- 2
90159-60621
Headlamp Assembly Screw- Part Notes: 2019-21, Multi-Led, Japan Built;2019-21, Multi-Led, North America Built;2019-21, Projector Led, W/Adaptive Lights
- Location: Driver Side;Passenger Side
$1.06 $0.761
- 3
90109-A0061
Headlamp Assembly Bolt- Part Notes: 2019-21, Multi-Led, Japan Built;2019-21, Multi-Led, North America Built;2019-21, Projector Led, W/Adaptive Lights
- Location: Driver Side;Passenger Side
$1.41 $1.021
- 4
90189-06238
Headlamp Assembly Grommet- Part Notes: 2019-21, Multi-Led, Japan Built;2019-21, Multi-Led, North America Built;2019-21, Projector Led, W/Adaptive Lights
- Location: Driver Side;Passenger Side
$1.72 $1.241
- 5
90981-11065
Marker Lamp Bulb- Part Notes: 2019-21, Multi-Led, North America Built
- Location: Driver Side;Passenger Side
$3.83 $2.751 - 5
90981-11064
Marker Lamp Bulb- Part Notes: 2019-21, Multi-Led, Japan Built;2019-21, Projector Led, W/Adaptive Lights
- Location: Driver Side;Passenger Side
$3.83 $2.751
- 6
81138-22680
Marker Lamp Bulb Socket- Part Notes: 2019-21, Multi-Led, Japan Built;2019-21, Multi-Led, North America Built;2019-21, Projector Led, W/Adaptive Lights
- Location: Driver Side;Passenger Side
$21.41 $15.381
- 7
90981-15025
Signal Bulb- Part Notes: 2019-21, Multi-Led, Japan Built;2019-21, Multi-Led, North America Built;2019-21, Projector Led, W/Adaptive Lights
- Location: Driver Side;Passenger Side
$11.49 $8.261
- 8
90075-60083
Signal Bulb Socket- Part Notes: 2019-21, Multi-Led, Japan Built;2019-21, Multi-Led, North America Built;2019-21, Projector Led, W/Adaptive Lights
- Location: Driver Side;Passenger Side
$15.95 $11.461

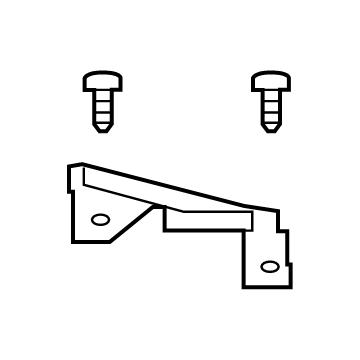

- 9
81193-42050
Repair Bracket- Part Notes: 2019-21, Multi-Led, Japan Built, Upper, Inner;2019-21, Multi-Led, North America Built, Upper, Inner;2019-21, Projector Led, W/Adaptive Lights, Upper, Inner
- Location: Passenger Side
$20.74 $14.901 - 9
81194-42050
Repair Bracket- Part Notes: 2019-21, Multi-Led, Japan Built, Upper, Inner;2019-21, Multi-Led, North America Built, Upper, Inner
- Location: Driver Side
$20.74 $14.901
- 10
81193-42060
Repair Bracket- Part Notes: 2019-21, Multi-Led, Japan Built, Upper, Outer;2019-21, Multi-Led, North America Built, Upper, Outer;2019-21, Projector Led, W/Adaptive Lights, Upper, Outer
- Location: Passenger Side
$32.98 $23.701 - 10
81194-42050
Repair Bracket- Part Notes: 2019-21, Projector Led, W/Adaptive Lights, Upper, Inner
- Location: Driver Side
$20.74 $14.901 - 10
81194-42060
Repair Bracket- Part Notes: 2019-21, Multi-Led, Japan Built, Upper, Outer;2019-21, Multi-Led, North America Built, Upper, Outer;2019-21, Projector Led, W/Adaptive Lights, Upper, Outer
- Location: Driver Side
$32.98 $23.701
- 11
81195-42050
Repair Bracket- Part Notes: 2019-21, Multi-Led, Japan Built, Lower, Inner;2019-21, Multi-Led, North America Built, Lower, Inner;2019-21, Projector Led, W/Adaptive Lights, Lower, Inner
- Location: Passenger Side
$32.98 $23.701 - 1181196-42050
Repair Bracket- Part Notes: 2019-21, Multi-Led, Japan Built, Lower, Inner;2019-21, Multi-Led, North America Built, Lower, Inner
- Location: Driver Side
$32.98 $23.701
- 12
81195-42060
Repair Bracket- Part Notes: 2019-21, Multi-Led, Japan Built, Lower, Outer;2019-21, Multi-Led, North America Built, Lower, Outer;2019-21, Projector Led, W/Adaptive Lights, Lower, Outer
- Location: Passenger Side
$21.18 $15.211 - 1281196-42050
Repair Bracket- Part Notes: 2019-21, Projector Led, W/Adaptive Lights, Lower, Inner
- Location: Driver Side
$32.98 $23.701 - 12
81196-42060
Repair Bracket- Part Notes: 2019-21, Multi-Led, Japan Built, Lower, Outer;2019-21, Multi-Led, North America Built, Lower, Outer;2019-21, Projector Led, W/Adaptive Lights, Lower, Outer
- Location: Driver Side
$21.18 $15.211
- 13
$376.17 $263.461 - 13$376.17 $263.461
- 14
81134-42830
Module Seal- Part Notes: 2019-21, Projector Led, W/Adaptive Lights
- Location: Driver Side;Passenger Side
$5.98 $4.291
- 15
81136-72020
Module Screw- Part Notes: 2019-21, Projector Led, W/Adaptive Lights
- Location: Driver Side;Passenger Side
$1.75 $1.251
81150-0R162
Composite Headlamp- Part Notes: Rav4; Canada Built; Left; W/Hybrid; Limited; W/O Adaptive Lighting;Rav4; Canada Built; Left; W/Hybrid; Xle;Rav4; Canada Built; Left; W/Hybrid; Xse
$1158.51 $790.521- 81110-0R162
Composite Headlamp- Part Notes: Rav4; Canada Built; Right; W/Hybrid; Limited; W/O Adaptive Lighting;Rav4; Canada Built; Right; W/Hybrid; Xle;Rav4; Canada Built; Right; W/Hybrid; Xse
$1158.51 $790.521
81130-42A02
Composite Headlamp- Part Notes: Rav4; Japan Built; Right; W/Hybrid; Limited;Rav4; Japan Built; Right; W/Hybrid; Xle;Rav4; Japan Built; Right; W/Hybrid; Xse
$1176.30 $802.661- 81170-42A02
Composite Headlamp- Part Notes: Rav4; Japan Built; Left; W/Hybrid; Limited;Rav4; Japan Built; Left; W/Hybrid; Xle;Rav4; Japan Built; Left; W/Hybrid; Xse
$1176.30 $802.661
$285.94 $200.261- $285.94 $200.26
- $292.09 $204.571
- $285.94 $200.261
$201.24 $142.161
8110B-42A30
Lens Sub-Assy, Headlamp, LH- Part Notes: ##
KOREA SPEC
KOREA SPEC,## - Location: Driver Side
- Production Date: 08/2020-01/2021,11/2018-07/2020
- Fitting Vehicle Options: AXAH52; AXAH54.. G, M
- Part Name Code: 8110B
$561.77 $383.33- Part Notes: ##
81145-42840
Unit Assy, Headlamp, RH- Part Notes: KOREA SPEC
- Location: Passenger Side
- Production Date: 11/2018-04/2020
- Fitting Vehicle Options: AXAA52.. M
- Part Name Code: 81135
- Replaced By: 81145-42842
$644.37 $439.69
8111B-42A20
Housing Sub-Assy, Headlamp, RH- Part Notes: KOREA SPEC
- Location: Passenger Side
- Production Date: 08/2020-01/2021,11/2018-07/2020
- Fitting Vehicle Options: AXAH52; AXAH54.. G, M
- Part Name Code: 81101
$124.90 $88.98
- 81145-42841
Unit Assy, Headlamp, RH- Part Notes: KOREA SPEC
- Location: Passenger Side
- Production Date: 08/2020-01/2021,04/2020-07/2020
- Fitting Vehicle Options: AXAA52.. M
- Part Name Code: 81135
- Replaced By: 81145-42842
$644.37 $439.69
81170-42821
Unit Assy, Headlamp, LH- Location: Driver Side
- Production Date: 08/2020-01/2021,04/2020-07/2020
- Fitting Vehicle Options: AXAA5#, AXAH54, AXAL54.. X
- Part Name Code: 81175
- Replaced By: 81170-42822
$744.99 $508.36
81116-42830
Bracket, Headlamp, RH- Part Notes: KOREA SPEC
- Location: Passenger Side
- Production Date: 08/2020-12/2021,11/2018-07/2020
- Fitting Vehicle Options: AXAA52.. M
- Part Name Code: 81116C
$52.32 $37.59
81145-42A30
Unit Assy, Headlamp, RH- Part Notes: KOREA SPEC
- Location: Passenger Side
- Production Date: 11/2018-10/2019
- Fitting Vehicle Options: AXAH52; AXAH54.. G, M
- Part Name Code: 81135
- Replaced By: 81145-42E50
$1245.16 $849.65
81185-42A31
Unit Assy, Headlamp, LH- Part Notes: KOREA SPEC
- Location: Driver Side
- Production Date: 10/2019-04/2020
- Fitting Vehicle Options: AXAH52; AXAH54.. G, M
- Part Name Code: 81175
- Replaced By: 81185-42A33
$1227.21 $837.39
81130-42810
Unit Assy, Headlamp, RH- Location: Passenger Side
- Production Date: 11/2018-04/2020
- Fitting Vehicle Options: AXAA5#.. G, M, V
- Part Name Code: 81135
- Replaced By: 81130-42812
$744.99 $508.36
81156-42830
Bracket, Headlamp, LH- Part Notes: KOREA SPEC
- Location: Driver Side
- Production Date: 08/2020-12/2021,11/2018-07/2020
- Fitting Vehicle Options: AXAA52.. M
- Part Name Code: 81156A
$52.32 $37.59
- 81170-42A00
Unit Assy, Headlamp, LH- Location: Driver Side
- Production Date: 02/2019-04/2020
- Fitting Vehicle Options: AXAH54.. G, M
- Part Name Code: 81175
- Replaced By: 81170-42A02
$1176.30 $802.66
- 81185-42840
Unit Assy, Headlamp, LH- Part Notes: KOREA SPEC
- Location: Driver Side
- Production Date: 11/2018-04/2020
- Fitting Vehicle Options: AXAA52.. M
- Part Name Code: 81175
- Replaced By: 81185-42842
$644.37 $439.69
$1.41 $1.02
81170-42820
Unit Assy, Headlamp, LH- Location: Driver Side
- Production Date: 11/2018-04/2020
- Fitting Vehicle Options: AXAA5#, AXAH54.. X
- Part Name Code: 81175
- Replaced By: 81170-42822
$744.99 $508.36
81117-42830
Protector, Headlamp, RH- Part Notes: KOREA SPEC
- Location: Passenger Side
- Production Date: 08/2020-08/2021,11/2018-07/2020
- Fitting Vehicle Options: AXAH52; AXAA52.. M; AXAH54.. G, M
- Part Name Code: 81193A
- Replaced By: 81117-42831
$32.32 $23.22
81160-42A31
Unit Assy, Headlamp Led, LH- Part Notes: KOREA SPEC
- Location: Driver Side
- Production Date: 08/2020-01/2021,10/2019-07/2020
- Fitting Vehicle Options: AXAH52; AXAH54.. G, M
- Part Name Code: 81160A
$468.47 $328.11
- 81130-42820
Unit Assy, Headlamp, RH- Location: Passenger Side
- Production Date: 11/2018-04/2020
- Fitting Vehicle Options: AXAA5#, AXAH54.. X
- Part Name Code: 81135
- Replaced By: 81130-42822
$744.99 $508.36
81140-42A30
Unit Assy, Headlamp Led, RH- Part Notes: KOREA SPEC
- Location: Passenger Side
- Production Date: 11/2018-10/2019
- Fitting Vehicle Options: AXAH52; AXAH54.. G, M
- Part Name Code: 81140
$468.47 $328.11
- 81130-42A00
Unit Assy, Headlamp, RH- Location: Passenger Side
- Production Date: 02/2019-04/2020
- Fitting Vehicle Options: AXAH54.. G, M
- Part Name Code: 81135
- Replaced By: 81130-42A02
$1176.30 $802.66
81157-42830
Protector, Headlamp, LH- Part Notes: KOREA SPEC
- Location: Driver Side
- Production Date: 08/2020-08/2021,11/2018-07/2020
- Fitting Vehicle Options: AXAH52; AXAA52.. M; AXAH54.. G, M
- Part Name Code: 81194A
- Replaced By: 81157-42831
$32.32 $23.22
81016-42830
Computer Sub-Assy, Headlamp, RH- Part Notes: KOREA SPEC
- Location: Passenger Side
- Production Date: 08/2020-12/2021,11/2018-07/2020
- Fitting Vehicle Options: AXAA52.. M
- Part Name Code: 81016A
$279.49 $195.75
8110A-42840
Lens Sub-Assy, Headlamp, RH- Part Notes: KOREA SPEC
- Location: Passenger Side
- Production Date: 08/2020-01/2021,11/2018-07/2020
- Fitting Vehicle Options: AXAA52.. M
- Part Name Code: 8110A
- Replaced By: 8110A-42842
$264.29 $185.11
- 81185-42841
Unit Assy, Headlamp, LH- Part Notes: KOREA SPEC
- Location: Driver Side
- Production Date: 08/2020-01/2021,04/2020-07/2020
- Fitting Vehicle Options: AXAA52.. M
- Part Name Code: 81175
- Replaced By: 81185-42842
$644.37 $439.69
- 81135-42830
Cover, Headlamp Socket- Part Notes: KOREA SPEC
- Production Date: 08/2020-12/2021,11/2018-07/2020
- Fitting Vehicle Options: AXAH52; AXAA52.. M; AXAH54.. G, M
- Require Quantity: 2
- Package Quantity: 1
- Part Name Code: 81144C
$20.74 $14.90
81056-42830
Computer Sub-Assy, Headlamp, LH- Part Notes: KOREA SPEC
- Location: Driver Side
- Production Date: 08/2020-12/2021,11/2018-07/2020
- Fitting Vehicle Options: AXAA52.. M
- Part Name Code: 81056A
$279.49 $195.75
- 81185-42A30
Unit Assy, Headlamp, LH- Part Notes: KOREA SPEC
- Location: Driver Side
- Production Date: 11/2018-10/2019
- Fitting Vehicle Options: AXAH52; AXAH54.. G, M
- Part Name Code: 81175
- Replaced By: 81185-42E50
$1227.21 $837.39
- 8115B-42A20
Housing Sub-Assy, Headlamp, LH- Part Notes: KOREA SPEC
- Location: Driver Side
- Production Date: 08/2020-01/2021,11/2018-07/2020
- Fitting Vehicle Options: AXAH52; AXAH54.. G, M
- Part Name Code: 81102
$125.15 $89.16
- 81145-42A32
Unit Assy, Headlamp, RH- Part Notes: KOREA SPEC
- Location: Passenger Side
- Production Date: 08/2020-01/2021,04/2020-07/2020
- Fitting Vehicle Options: AXAH52; AXAH54.. G, M
- Part Name Code: 81135
- Replaced By: 81145-42A33
$1227.21 $837.39
81185-42A32
Unit Assy, Headlamp, LH- Part Notes: KOREA SPEC
- Location: Driver Side
- Production Date: 08/2020-01/2021,04/2020-07/2020
- Fitting Vehicle Options: AXAH52; AXAH54.. G, M
- Part Name Code: 81175
- Replaced By: 81185-42A33
$1227.21 $837.39
- 81130-42811
Unit Assy, Headlamp, RH- Location: Passenger Side
- Production Date: 08/2020-01/2021,04/2020-07/2020
- Fitting Vehicle Options: AXAA5#.. G, M, V
- Part Name Code: 81135
- Replaced By: 81130-42812
$744.99 $508.36
- 81140-42840
Unit Assy, Headlamp Led, RH- Part Notes: KOREA SPEC
- Location: Passenger Side
- Production Date: 08/2020-12/2021,11/2018-07/2020
- Fitting Vehicle Options: AXAA52.. M
- Part Name Code: 81140
$178.74 $126.27
81170-42810
Unit Assy, Headlamp, LH- Location: Driver Side
- Production Date: 11/2018-04/2020
- Fitting Vehicle Options: AXAA5#.. G, M, V
- Part Name Code: 81175
- Replaced By: 81170-42812
$744.99 $508.36
- 81170-42A01
Unit Assy, Headlamp, LH- Location: Driver Side
- Production Date: 08/2020-01/2021,04/2020-07/2020
- Fitting Vehicle Options: AXAH54, AXAL54.. G, M
- Part Name Code: 81175
- Replaced By: 81170-42A02
$1176.30 $802.66
- 8110B-42840
Lens Sub-Assy, Headlamp, LH- Part Notes: KOREA SPEC
- Location: Driver Side
- Production Date: 08/2020-01/2021,11/2018-07/2020
- Fitting Vehicle Options: AXAA52.. M
- Part Name Code: 8110B
- Replaced By: 8110B-42842
$264.29 $185.11
- 81145-42A31
Unit Assy, Headlamp, RH- Part Notes: KOREA SPEC
- Location: Passenger Side
- Production Date: 10/2019-04/2020
- Fitting Vehicle Options: AXAH52; AXAH54.. G, M
- Part Name Code: 81135
- Replaced By: 81145-42A33
$1227.21 $837.39
- 81170-42811
Unit Assy, Headlamp, LH- Location: Driver Side
- Production Date: 08/2020-01/2021,04/2020-07/2020
- Fitting Vehicle Options: AXAA5#.. G, M, V
- Part Name Code: 81175
- Replaced By: 81170-42812
$744.99 $508.36
- 8110A-42A30
Lens Sub-Assy, Headlamp, RH- Part Notes: KOREA SPEC
- Location: Passenger Side
- Production Date: 08/2020-01/2021,11/2018-07/2020
- Fitting Vehicle Options: AXAH52; AXAH54.. G, M
- Part Name Code: 8110A
$535.92 $365.69
81130-42821
Unit Assy, Headlamp, RH- Location: Passenger Side
- Production Date: 08/2020-01/2021,04/2020-07/2020
- Fitting Vehicle Options: AXAA5#, AXAH54, AXAL54.. X
- Part Name Code: 81135
- Replaced By: 81130-42822
$744.99 $508.36
- 81130-42A01
Unit Assy, Headlamp, RH- Location: Passenger Side
- Production Date: 08/2020-01/2021,04/2020-07/2020
- Fitting Vehicle Options: AXAH54, AXAL54.. G, M
- Part Name Code: 81135
- Replaced By: 81130-42A02
$1176.30 $802.66
- 81160-42A30
Unit Assy, Headlamp Led, LH- Part Notes: KOREA SPEC
- Location: Driver Side
- Production Date: 11/2018-10/2019
- Fitting Vehicle Options: AXAH52; AXAH54.. G, M
- Part Name Code: 81160A
$468.47 $328.11
