5 diagrams found for the vehicle you selected.Select your vehicle options to narrow down results.

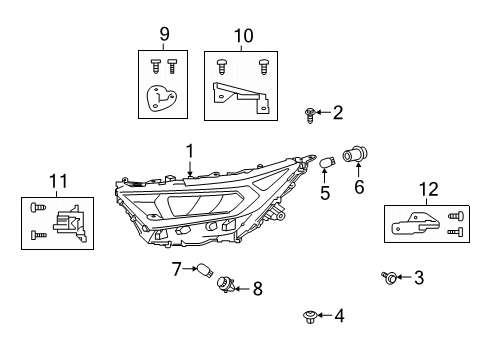

- 1.Front Lamps - Headlamp Components (Japan Built,Multi-Led)
- 2.Front Lamps - Headlamp Components (Japan Built,Without Adaptive Lights)
- 3.Front Lamps - Headlamp Components (Multi-Led,North America Built)
- 4.Front Lamps - Headlamp Components (North America Built,Without Adaptive Lights)

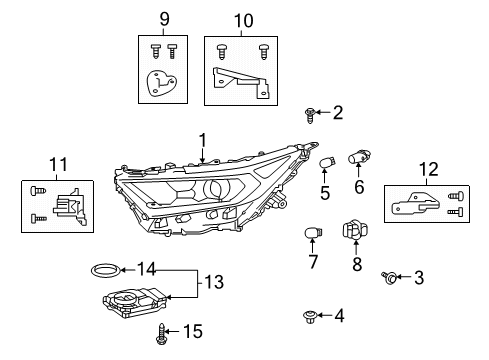

- 5.Front Lamps - Headlamp Components (Projector Led,With Adaptive Lights)
Sort by:
Ref No.
Ref No.
Part No. & Part Description
Price & Qty.
Part No. &
Part Description
Part Description
- 1
81150-0R142
Headlamp Assembly- Part Notes: 2019-21, Multi-Led, North America Built, Chrome Bezel
- Location: Driver Side
$747.00 $509.721 - 1
81150-0R162
Headlamp Assembly- Part Notes: 2019-21, W/O Adaptive Lights, North America Built
- Location: Driver Side
$1158.51 $790.521 - 181110-0R142
Headlamp Assembly- Part Notes: 2019-21, Multi-Led, North America Built, Chrome Bezel
- Location: Passenger Side
$747.00 $509.721 - 181110-0R152
Headlamp Assembly- Part Notes: 2019-21, Multi-Led, North America Built, Black Bezel
- Location: Passenger Side
$747.00 $509.721 - 181110-0R162
Headlamp Assembly- Part Notes: 2019-21, W/O Adaptive Lights, North America Built
- Location: Passenger Side
$1158.51 $790.521 - 1
81130-42812
Headlamp Assembly- Part Notes: 2019-21, Multi-Led, Japan Built, Chrome Bezel
- Location: Passenger Side
$745.01 $508.361 - 181130-42822
Headlamp Assembly- Part Notes: 2019-21, Multi-Led, Japan Built, Black Bezel
- Location: Passenger Side
$745.01 $508.361 - 1
81130-42B11
Headlamp Assembly- Part Notes: 2019-21, W/O Adaptive Lights, Japan Built, W/Prime Plug-In
- Location: Passenger Side
$1176.31 $802.661 - 1
81130-42B21
Headlamp Assembly- Part Notes: 2019-21, Projector Led, W/Adaptive Lights, W/Prime Plug-In
- Location: Passenger Side
$1469.23 $1002.531 - 181150-0R152
Headlamp Assembly- Part Notes: 2019-21, Multi-Led, North America Built, Black Bezel
- Location: Driver Side
$747.00 $509.721 - 181170-42812
Headlamp Assembly- Part Notes: 2019-21, Multi-Led, Japan Built, Chrome Bezel
- Location: Driver Side
$745.01 $508.361 - 181170-42822
Headlamp Assembly- Part Notes: 2019-21, Multi-Led, Japan Built, Black Bezel
- Location: Driver Side
$745.01 $508.361 - 181170-42B11
Headlamp Assembly- Part Notes: 2019-21, W/O Adaptive Lights, Japan Built, W/Prime Plug-In
- Location: Driver Side
$1176.31 $802.661 - 181170-42B21
Headlamp Assembly- Part Notes: 2019-21, Projector Led, W/Adaptive Lights, W/Prime Plug-In
- Location: Driver Side
$1469.23 $1002.531
- 2
90159-60621
Headlamp Assembly Screw- Part Notes: 2019-21, Multi-Led, Japan Built;2019-21, Multi-Led, North America Built;2019-21, Projector Led, W/Adaptive Lights;2019-21, W/O Adaptive Lights, Japan Built;2019-21, W/O Adaptive Lights, North America Built
- Location: Driver Side;Passenger Side
$1.03 $0.741
- 3
90109-A0061
Headlamp Assembly Bolt- Part Notes: 2019-21, Multi-Led, Japan Built;2019-21, Multi-Led, North America Built;2019-21, Projector Led, W/Adaptive Lights;2019-21, W/O Adaptive Lights, Japan Built;2019-21, W/O Adaptive Lights, North America Built
- Location: Driver Side;Passenger Side
$1.38 $0.991
- 4
90189-06238
Headlamp Assembly Grommet- Part Notes: 2019-21, Multi-Led, Japan Built;2019-21, Multi-Led, North America Built;2019-21, Projector Led, W/Adaptive Lights;2019-21, W/O Adaptive Lights, Japan Built;2019-21, W/O Adaptive Lights, North America Built
- Location: Driver Side;Passenger Side
$1.70 $1.221
- 5

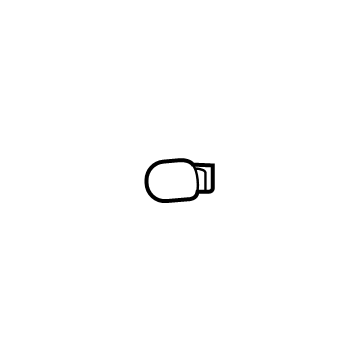

90981-11065

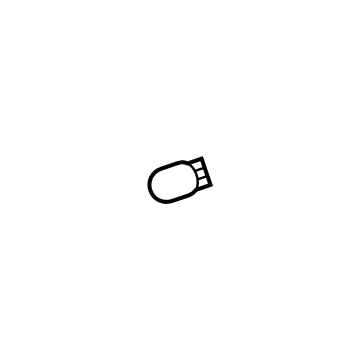

Marker Lamp Bulb- Part Notes: 2019-21, Multi-Led, North America Built
- Location: Driver Side;Passenger Side
$3.82 $2.751 - 5
90981-11064
Marker Lamp Bulb- Part Notes: 2019-21, Multi-Led, Japan Built;2019-21, Projector Led, W/Adaptive Lights;2019-21, W/O Adaptive Lights, Japan Built;2019-21, W/O Adaptive Lights, North America Built
- Location: Driver Side;Passenger Side
$3.82 $2.751
- 6

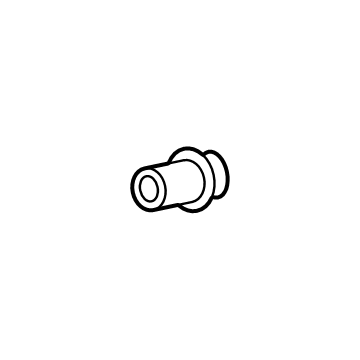

81138-22680
Marker Lamp Bulb Socket- Part Notes: 2019-21, Multi-Led, Japan Built;2019-21, Multi-Led, North America Built;2019-21, Projector Led, W/Adaptive Lights;2019-21, W/O Adaptive Lights, Japan Built;2019-21, W/O Adaptive Lights, North America Built
- Location: Driver Side;Passenger Side
$21.06 $15.131
- 7
90981-15025
Signal Bulb- Part Notes: 2019-21, Multi-Led, Japan Built;2019-21, Multi-Led, North America Built;2019-21, Projector Led, W/Adaptive Lights;2019-21, W/O Adaptive Lights, Japan Built;2019-21, W/O Adaptive Lights, North America Built
- Location: Driver Side;Passenger Side
$11.49 $8.261
- 8
90075-60083
Signal Bulb Socket- Part Notes: 2019-21, Multi-Led, Japan Built;2019-21, Multi-Led, North America Built;2019-21, Projector Led, W/Adaptive Lights;2019-21, W/O Adaptive Lights, Japan Built;2019-21, W/O Adaptive Lights, North America Built
- Location: Driver Side;Passenger Side
$15.72 $11.291
- 9

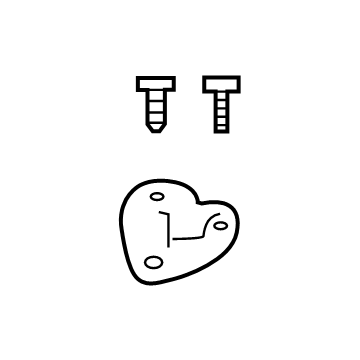

81193-42050

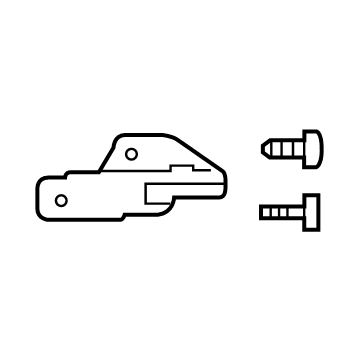

Repair Bracket- Part Notes: 2019-21, Multi-Led, Japan Built, Upper, Inner;2019-21, Multi-Led, North America Built, Upper, Inner;2019-21, Projector Led, W/Adaptive Lights, Upper, Inner;2019-21, W/O Adaptive Lights, Japan Built, Upper, Inner;2019-21, W/O Adaptive Lights, North America Built, Upper, Inner
- Location: Passenger Side
$20.43 $14.671 - 9
81194-42050
Repair Bracket- Part Notes: 2019-21, Multi-Led, Japan Built, Upper, Inner;2019-21, Multi-Led, North America Built, Upper, Inner;2019-21, W/O Adaptive Lights, Japan Built, Upper, Inner;2019-21, W/O Adaptive Lights, North America Built, Upper, Inner
- Location: Driver Side
$20.43 $14.671
- 10

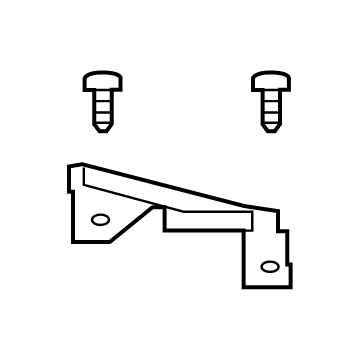

81193-42060
Repair Bracket- Part Notes: 2019-21, Multi-Led, Japan Built, Upper, Outer;2019-21, Multi-Led, North America Built, Upper, Outer;2019-21, Projector Led, W/Adaptive Lights, Upper, Outer;2019-21, W/O Adaptive Lights, Japan Built, Upper, Outer;2019-21, W/O Adaptive Lights, North America Built, Upper, Outer
- Location: Passenger Side
$32.47 $23.331 - 10
81194-42050
Repair Bracket- Part Notes: 2019-21, Projector Led, W/Adaptive Lights, Upper, Inner
- Location: Driver Side
$20.43 $14.671 - 10
81194-42060
Repair Bracket- Part Notes: 2019-21, Multi-Led, Japan Built, Upper, Outer;2019-21, Multi-Led, North America Built, Upper, Outer;2019-21, Projector Led, W/Adaptive Lights, Upper, Outer;2019-21, W/O Adaptive Lights, Japan Built, Upper, Outer;2019-21, W/O Adaptive Lights, North America Built, Upper, Outer
- Location: Driver Side
$32.47 $23.331
- 11

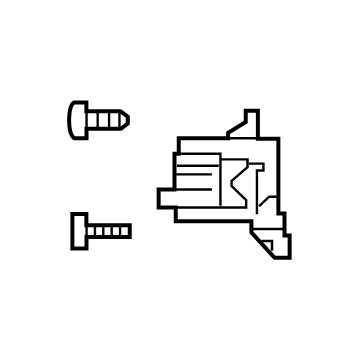

81195-42050
Repair Bracket- Part Notes: 2019-21, Multi-Led, Japan Built, Lower, Inner;2019-21, Multi-Led, North America Built, Lower, Inner;2019-21, Projector Led, W/Adaptive Lights, Lower, Inner;2019-21, W/O Adaptive Lights, Japan Built, Lower, Inner;2019-21, W/O Adaptive Lights, North America Built, Lower, Inner
- Location: Passenger Side
$32.47 $23.331 - 11
81196-42050
Repair Bracket- Part Notes: 2019-21, Multi-Led, Japan Built, Lower, Inner;2019-21, Multi-Led, North America Built, Lower, Inner;2019-21, W/O Adaptive Lights, Japan Built, Lower, Inner;2019-21, W/O Adaptive Lights, North America Built, Lower, Inner
- Location: Driver Side
$32.47 $23.331
- 12

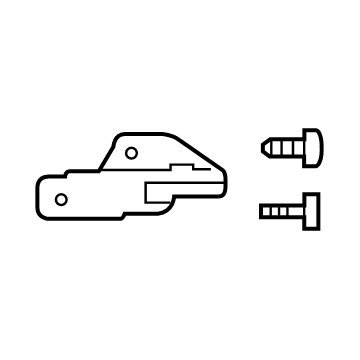

81195-42060
Repair Bracket- Part Notes: 2019-21, Multi-Led, Japan Built, Lower, Outer;2019-21, Multi-Led, North America Built, Lower, Outer;2019-21, Projector Led, W/Adaptive Lights, Lower, Outer;2019-21, W/O Adaptive Lights, Japan Built, Lower, Outer;2019-21, W/O Adaptive Lights, North America Built, Lower, Outer
- Location: Passenger Side
$20.86 $14.991 - 12
81196-42050
Repair Bracket- Part Notes: 2019-21, Projector Led, W/Adaptive Lights, Lower, Inner
- Location: Driver Side
$32.47 $23.331 - 12
81196-42060
Repair Bracket- Part Notes: 2019-21, Multi-Led, Japan Built, Lower, Outer;2019-21, Multi-Led, North America Built, Lower, Outer;2019-21, Projector Led, W/Adaptive Lights, Lower, Outer;2019-21, W/O Adaptive Lights, Japan Built, Lower, Outer;2019-21, W/O Adaptive Lights, North America Built, Lower, Outer
- Location: Driver Side
$20.86 $14.991
- 13
81016-42B20
Module- Part Notes: 2019-21, Projector Led, W/Adaptive Lights, W/Prime Plug-In
- Location: Passenger Side
$366.11 $256.421 - 1381056-42B20
Module- Part Notes: 2019-21, Projector Led, W/Adaptive Lights, W/Prime Plug-In
- Location: Driver Side
$366.11 $256.421
- 14
81134-42830

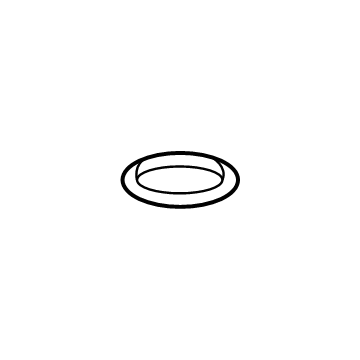

Module Seal- Part Notes: 2019-21, Projector Led, W/Adaptive Lights
- Location: Driver Side;Passenger Side
$5.89 $4.231
- 15
81136-72020
Module Screw- Part Notes: 2019-21, Projector Led, W/Adaptive Lights
- Location: Driver Side;Passenger Side
$1.72 $1.241
81170-42B20
Unit, Headlamp, LH- Part Notes: PHV PREMIUM PACKAGE(PANORAMIC *MR)&HEADLAMP-LED & WITH(*AFLS)
- Location: Driver Side
- Production Date: 06/2020-01/2021
- Fitting Vehicle Options: AXAP54.. XSE
- Part Name Code: 81171A
- Replaced By: 81170-42B21
$1469.23 $1002.53
$1.38 $0.99
81130-42B10
Unit, Headlamp, RH- Location: Passenger Side
- Production Date: 06/2020-01/2021
- Fitting Vehicle Options: AXAP54
- Part Name Code: 81131A
- Replaced By: 81130-42B11
$1176.31 $802.66
